嘉准F&C-安全光幕-FGYM20/40双输出光幕传感器
采用铝合金外壳设计，结构稳定，使用寿命长；
多种型号尺寸可选，适用于多种场合；
*薄型光幕；
统一标配柔软线。
规格表
| 检测类型 Test type | 透过型 Transmissive type | ||||||

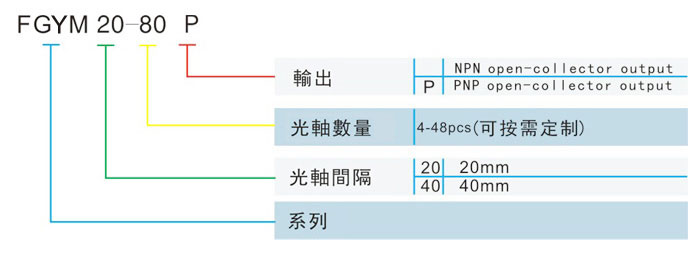

| 型号 Model | NPN集电*开路输出 NPN open-collector output | FGYM20-08 FGYM20-12 FGYM20-16 | FGYM20-24 FGYM20-32 FGYM20-40 | FGYM20-48 FGYM20-56 FGYM20-64 | FGYM40-04 FGYM40-06 FGYM40-08 | FGYM40-12 FGYM40-16 FGYM40-20 | FGYM40-24 FGYM40-28 FGYM40-32 |
| PNP集电*开路输出 PNPopen-collector output | FGYM20-08P FGYM20-12P FGYM20-16P | FGYM20-24P FGYM20-32P FGYM20-40P | FGYM20-48P FGYM20-56P FGYM20-64P | FGYM40-04P FGYM40-06P FGYM40-08P | FGYM40-12P FGYM40-16P FGYM40-20P | FGYM40-24P FGYM40-28P FGYM40-32P | |
| 外型尺寸Overall dimension | Fiber optic space:20mm | Fiber optic space:40mm | |||||
| Scanning distance/检测距离 | 0.2-2M (usually used 2m) | ||||||
| Scanning object/检测物理学体 | *小不透明物体 Min.dimension:φ20mm | *小不透明物体 Min.dimension:φ40mm | |||||
| Optic axis width/光轴间距 |  20mm |  40mm | |||||
| Optic axis/光轴数 | 8~48PCS | 4~24PCS | |||||
| Scanning width/检测宽度 | 140~960MM | 120~920MM | |||||
| Angle of direction/角度指向范围 | Scanning distance: ±3°C above 2m | ||||||
| Power voltage/电源电压 | 12-24VDC 10% ±(Ripple P-P:Max.10%) | ||||||
| Protective circuit/保护电路 | Circuit reverse connecting protection 反接保护 | ||||||
| Current consunmption/电流损耗 | 发射端**：80Am,r， 接收端**：80Am | ||||||
| Control output/控制输出 | NPN:Load voltage Max.30VDC load current max.100mA Residual volatage max.1VDCPNP:output voltage Max.100mA load current min.(Power supply-2.5)VDC | ||||||
| Operating mode/动作模式 | Light ON only | ||||||
| Short circuit protection/短路保护 | Built-in | ||||||
| Response time/响应时间 | Min.12ms | ||||||
| Light source/光源 | Infrared light | ||||||
| Simultaneous mode/同步方式 | Simultaneous mode | ||||||
| Self-diagnostic/自诊断 | Light source inspection,transmitter/receiver luminescent circuit and output circuit | ||||||
| Model | L(mm) | Model | L(mm) |
| FGYM20-08(P) | 140 | FGYM20-32(P) | 620 |
| FGYM40-04(P) | 120 | FGYM40-16(P) | 600 |
| FGYM20-12(P) | 220 | FGYM20-36(P) | 700 |
| FGYM40-06(P) | 200 | FGYM40-18(P) | 680 |
| FGYM20-16(p) | 300 | FGYM20-40(P) | 780 |
| FGYM40-08(P) | 280 | FGYM40-20(P) | 760 |
| FGYM20-20(P) | 380 | FGYM20-44(P) | 860 |
| FGYM40-10(P) | 360 | FGYM40-22(p) | 840 |
| FGYM20-24(P) | 460 | FGYM20-48(P) | 940 |
| FGYM40-12(P) | 440 | FGYM40-24(P) | 920 |
| FGYM20-28(P) | 540 | ||
| FGYM40-14(P) | 520 |
