发布日期：2023-09-15 访问次数：368

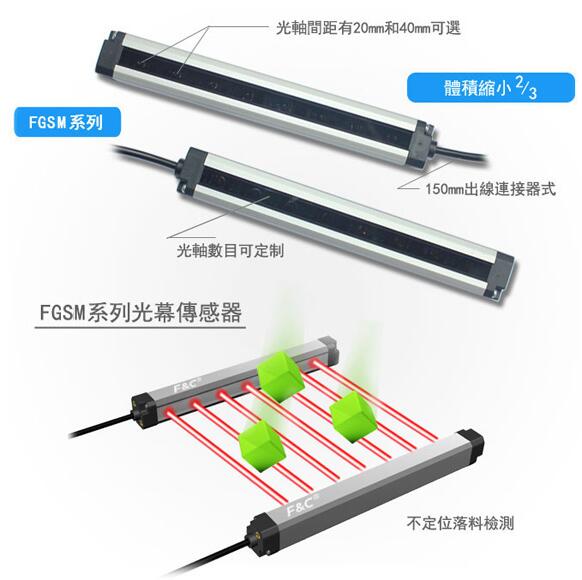

嘉准F&C-安全光幕-FGSM系列光幕传感器
小体积，更加方便、灵活安装。
采用铝合金外壳设计，结构稳定，使用寿命长；
多种型号尺寸可选，适用于多种场合；
*薄型光幕；
统一标配柔软线。
规格表
| 检测类型 Test type | 透过型 Transmissive type | ||||||||

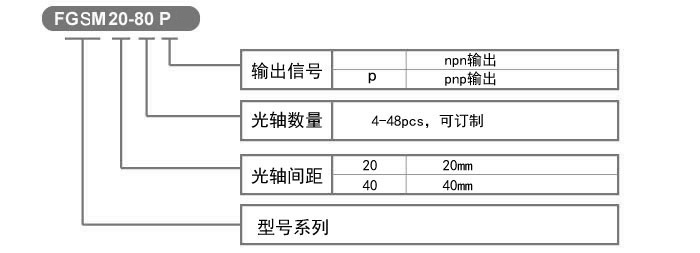

| 型号 Model | NPN集电*开路输出(标准型) NPN open-collector output(Standard type) | FGSM20-08 FGSM20-12 FGSM20-16 | FGSM20-20 FGSM20-24 FGSM20-28 | FGSM20-30 FGSM20-36 FGSM20-40 | FGSM20-44 FGSM20-48 | FGSM40-02 FGSM40-04 FGSM40-06 FGSM40-08 | FGSM40-10 FGSM40-12 FGSM40-14 | FGSM40-16 FGSM40-18 FGSM40-20 | FGSM40-22 FGSM40-24 |
| PNP集电*开路输出 PNPopen-collector output | FGSM20-08P FGSM20-12P FGSM20-16P | FGSM20-20P FGSM20-24P FGSM20-28P | FGSM20-30P FGSM20-36P FGSM20-40P | FGSM20-44P FGSM20-48P | FGSM40-02P FGSM40-04P FGSM40-06P FGSM40-08P | FGSM40-10P FGSM40-12P FGSM40-14P | FGSM40-16P FGSM40-18P FGSM40-20P | FGSM40-22P FGSM40-24P | |
| 外型尺寸Overall dimension |  Fiber optic space:20mm |  Fiber optic space:40mm | |||||||
| Scanning distance/检测距离 | 0.2-2M(usually use 2m) | ||||||||
| Scanning object/检测物理学体 | Nontransparent object Min.dimension:φ20mm | Nontransparent object Min.dimension:φ40mm | |||||||
| Optic axis width/光轴间距 | 20mm | 40mm | |||||||
| Optic axis/光轴数 | 8~48PCS | 4~24PCS | |||||||
| Scanning width/检测宽度 | 140~940MM | 120~920MM | |||||||
| Angle of direction/角度指向范围 | Scanning distance: ±3°C above 2m | ||||||||
| Power voltage/电源电压 | 12-24VDC 10% ±(Ripple P-P:Max.10%) | ||||||||
| Protective circuit/保护电路 | Circuit reverse connecting protection | ||||||||
| Current consunmption/电流损耗 | Transmitter:max.80Am,receiver:max.80Am | ||||||||
| Control output/控制输出 | NPN:Load voltage Max.30VDC load current max.100mA Residual volatage max.1VDCPNP:output voltage Max.100mA load current min.(Power supply-2.5)VDC | ||||||||
| Operating mode/动作模式 | Light ON only | ||||||||
| Short circuit protection/短路保护 | Built-in | ||||||||
| Response time/响应时间 | Min.12ms | ||||||||
| Light source/光源 | Infrared light | ||||||||
| Simultaneous mode/同步方式 | Simultaneous mode | ||||||||
| Self-diagnostic/自诊断 | Light source inspection,transmitter/receiver luminescent circuit and output circuit | ||||||||
| Model | L(mm) | Model | L(mm) |
| FGSM20-08(P) | 140 | FGSM20-32(P) | 620 |
| FGSM40-04(P) | 120 | FGSM40-16(P) | 600 |
| FGSM20-12(P) | 220 | FGSM20-36(P) | 700 |
| FGSM40-06(P) | 200 | FGSM40-18(P) | 680 |
| FGSM20-16(p) | 300 | FGSM20-40(P) | 780 |
| FGSM40-08(P) | 280 | FGSM40-20(P) | 760 |
| FGSM20-20(P) | 380 | FGSM20-44(P) | 860 |
| FGSM40-10(P) | 360 | FGSM40-22(p) | 840 |
| FGSM20-24(P) | 460 | FGSM20-48(P) | 940 |
| FGSM40-12(P) | 440 | FGSM40-24(P) | 920 |
| FGSM20-28(P) | 540 | ||
| FGSM40-14(P) | 520 |
