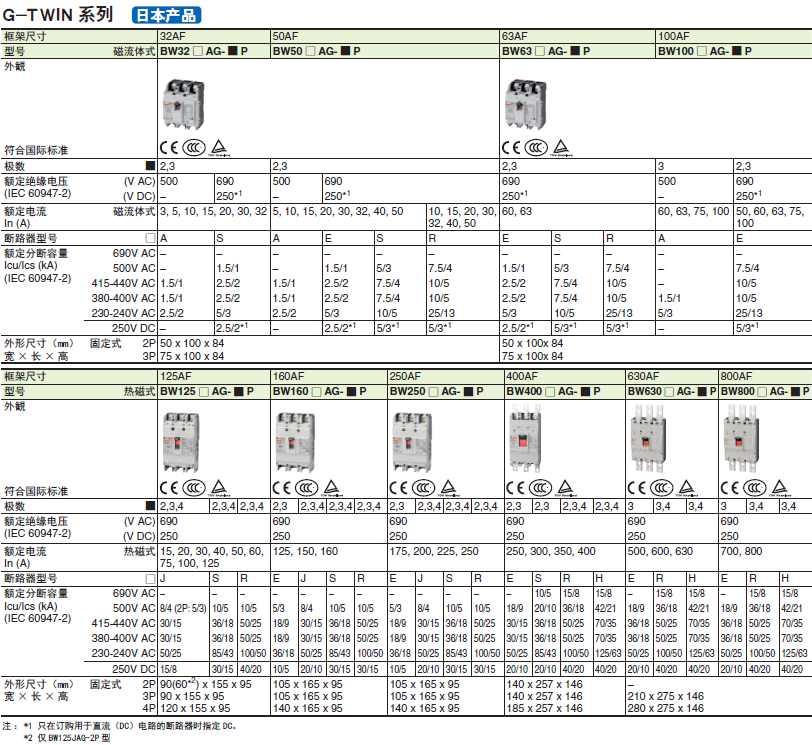

FUJI | G-TWIN系列 塑壳断路器

发布日期：2023-09-14 访问次数：90

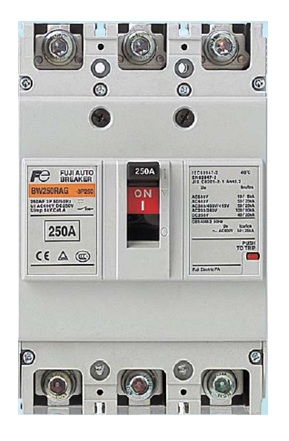

富士电机FUJI-G-TWIN系列塑壳(漏电)断路器

小型而高功能。产品阵容增加到4P型号。 125-400AF的新型塑壳式断路器。


特点

根据富士独自的消融式断路技术，实现了小型而高功能的断路器

统一了内部附属品尺寸，使用更简单。(125/250AF)

标明主要部件的材料，符合RoHS指令、接点使用无镉材料，达到环保目的

漏电保护断路器与标准断路器尺寸相同，便于互相替换

额定电流：3~800A



6.3.1  MCCB  --  2, 3,4*（标准品）
型   号額    定    电    流


分断容量Icu / Ics(kA)

( A )#


AC230VAC400V
BW32AAG-2P# 3,5,10,15,20,30,32


2.5/21.5/1
BW32AAG-3P# 3,5,10,15,20,30,32


2.5/21.5/1
BW32SAG-2P# 3,5,10,15,20,30,32


5/32.5/2
BW32SAG-3P# 3,5,10,15,20,30,32


5/32.5/2
BW50AAG-2P# 5,10,15,20,30,32,40,50


2.5/21.5/1
BW50AAG-3P# 5,10,15,20,30,32,40,50


2.5/21.5/1
BW50EAG-2P# 5,10,15,20,30,32,40,50


5/32.5/2
BW50EAG-3P# 5,10,15,20,30,32,40,50


5/32.5/2
BW50SAG-2P# 5,10,15,20,30,32,40,50


10/57.5/4
BW50SAG-3P#5,10,15,20,30,32,40,50


10/57.5/4
BW50RAG-2P#5,10,15,20,30,32,40,50


25/1310/5
BW50RAG-3P#5,10,15,20,30,32,40,50


25/1310/5
BW63EAG-2P# 60,63


5/32.5/2
BW63EAG-3P#60,63


5/32.5/2
BW63SAG-2P# 60,63


10/57.5/4
BW63SAG-3P#60,63


10/57.5/4
BW63RAG-2P# 60,63


25/1310/5
BW63RAG-3P# 60,63


25/1310/5
BW100EAG-2P# 50,60,63,75,100


25/1310/5
BW100EAG-3P# 50,60,63,75,100


25/1310/5
BW125JAG-2P# CJ15, 20 ,30, 40, 50, 60, 75, 100, 125


50 / 2530 / 15
BW125JAG-3P# CJ15, 20 ,30, 40, 50, 60, 75, 100, 125


50 / 2530 / 15
BW125JAG-4P# CJ15, 20 ,30, 40, 50, 60, 75, 100, 125


50 / 2530 / 15
BW125RAG-2P# CJ15, 20 ,30, 40, 50, 60, 75, 100, 125


100 / 5050 / 25
BW125RAG-3P# CJ15, 20 ,30, 40, 50, 60, 75, 100, 125


100 / 5050 / 25
BW125RAG-4P# CJ15, 20 ,30, 40, 50, 60, 75, 100, 125


100 / 5050 / 25
BW250EAG-2P# CJ125, 150, 160, 175, 200,  225,  250


36 / 1818 / 9
BW250EAG-3P# CJ125, 150, 160, 175, 200,  225,  250


36 / 1818 / 9
BW250JAG-2P# CJ125, 150, 160, 175, 200,  225,  250


50/2530/15
BW250JAG-3P# CJ125, 150, 160, 175, 200,  225,  250


50/2530/15
BW250JAG-4P# CJ125, 150, 160, 175, 200,  225,  250


50/2530/15
BW250RAG-2P# CJ125, 150, 160, 175, 200,  225,  250


100/5050/25
BW250RAG-3P# CJ125, 150, 160, 175, 200,  225,  250


100/5050/25
BW250RAG-4P# CJ125, 150, 160, 175, 200,  225,  250


100/5050/25
BW400EAG-2P# CJ250,  300,  350,  400


50/2530/15
BW400EAG-3P# CJ250,  300,  350,  400


50/2530/15
BW400SAG-2P# CJ250,  300,  350,  400


85/4336/18
BW400SAG-3P# CJ250,  300,  350,  400


85/4336/18
BW400RAG-2P# CJ250,  300,  350,  400


100/5050/25
BW400RAG-3P# CJ250,  300,  350,  400


100/5050/25
BW400RAG-4P# CJ250,  300,  350,  400


100/5050/25
BW400HAG-2P# CJ250,  300,  350,  400


125/6370/35
BW400HAG-3P# CJ250,  300,  350,  400


125/6370/35
BW400HAG-4P# CJ250,  300,  350,  400


125/6370/35
BW630EAG-3P# CJ 500,  630


50 / 2530 / 15
BW630RAG-3P# CJ 500,  630


100/5050/25
BW630RAG-4P# CJ 500,  630


100/5050/25
BW630HAG-3P# CJ 500,  630


125/6370/35
BW630HAG-4P# CJ 500,  630


125/6370/35
BW800EAG-3P# CJ 700,  800


50 / 2530 / 15
BW800RAG-3P# CJ 700,  800


100/5050/25
BW800RAG-4P# CJ 700,  800


100/5050/25
BW800HAG-3P# CJ 700,  800


125/6370/35
BW800HAG-4P# CJ 700,  800


125/6370/35

6.3.1  MCCB  --  2, 3,4*（标准品）
型   号額    定    电    流


分断容量Icu / Ics(kA)

( A )#


AC230VAC400V
BW32AAG-2P# 3,5,10,15,20,30,32


2.5/21.5/1
BW32AAG-3P# 3,5,10,15,20,30,32


2.5/21.5/1
BW32SAG-2P# 3,5,10,15,20,30,32


5/32.5/2
BW32SAG-3P# 3,5,10,15,20,30,32


5/32.5/2
BW50AAG-2P# 5,10,15,20,30,32,40,50


2.5/21.5/1
BW50AAG-3P# 5,10,15,20,30,32,40,50


2.5/21.5/1
BW50EAG-2P# 5,10,15,20,30,32,40,50


5/32.5/2
BW50EAG-3P# 5,10,15,20,30,32,40,50


5/32.5/2
BW50SAG-2P# 5,10,15,20,30,32,40,50


10/57.5/4
BW50SAG-3P#5,10,15,20,30,32,40,50


10/57.5/4
BW50RAG-2P#5,10,15,20,30,32,40,50


25/1310/5
BW50RAG-3P#5,10,15,20,30,32,40,50


25/1310/5
BW63EAG-2P# 60,63


5/32.5/2
BW63EAG-3P#60,63


5/32.5/2
BW63SAG-2P# 60,63


10/57.5/4
BW63SAG-3P#60,63


10/57.5/4
BW63RAG-2P# 60,63


25/1310/5
BW63RAG-3P# 60,63


25/1310/5
BW100EAG-2P# 50,60,63,75,100


25/1310/5
BW100EAG-3P# 50,60,63,75,100


25/1310/5
BW125JAG-2P# CJ15, 20 ,30, 40, 50, 60, 75, 100, 125


50 / 2530 / 15
BW125JAG-3P# CJ15, 20 ,30, 40, 50, 60, 75, 100, 125


50 / 2530 / 15
BW125JAG-4P# CJ15, 20 ,30, 40, 50, 60, 75, 100, 125


50 / 2530 / 15
BW125RAG-2P# CJ15, 20 ,30, 40, 50, 60, 75, 100, 125


100 / 5050 / 25
BW125RAG-3P# CJ15, 20 ,30, 40, 50, 60, 75, 100, 125


100 / 5050 / 25
BW125RAG-4P# CJ15, 20 ,30, 40, 50, 60, 75, 100, 125


100 / 5050 / 25
BW250EAG-2P# CJ125, 150, 160, 175, 200,  225,  250


36 / 1818 / 9
BW250EAG-3P# CJ125, 150, 160, 175, 200,  225,  250


36 / 1818 / 9
BW250JAG-2P# CJ125, 150, 160, 175, 200,  225,  250


50/2530/15
BW250JAG-3P# CJ125, 150, 160, 175, 200,  225,  250


50/2530/15
BW250JAG-4P# CJ125, 150, 160, 175, 200,  225,  250


50/2530/15
BW250RAG-2P# CJ125, 150, 160, 175, 200,  225,  250


100/5050/25
BW250RAG-3P# CJ125, 150, 160, 175, 200,  225,  250


100/5050/25
BW250RAG-4P# CJ125, 150, 160, 175, 200,  225,  250


100/5050/25
BW400EAG-2P# CJ250,  300,  350,  400


50/2530/15
BW400EAG-3P# CJ250,  300,  350,  400


50/2530/15
BW400SAG-2P# CJ250,  300,  350,  400


85/4336/18
BW400SAG-3P# CJ250,  300,  350,  400


85/4336/18
BW400RAG-2P# CJ250,  300,  350,  400


100/5050/25
BW400RAG-3P# CJ250,  300,  350,  400


100/5050/25
BW400RAG-4P# CJ250,  300,  350,  400


100/5050/25
BW400HAG-2P# CJ250,  300,  350,  400


125/6370/35
BW400HAG-3P# CJ250,  300,  350,  400


125/6370/35
BW400HAG-4P# CJ250,  300,  350,  400


125/6370/35
BW630EAG-3P# CJ 500,  630


50 / 2530 / 15
BW630RAG-3P# CJ 500,  630


100/5050/25
BW630RAG-4P# CJ 500,  630


100/5050/25
BW630HAG-3P# CJ 500,  630


125/6370/35
BW630HAG-4P# CJ 500,  630


125/6370/35
BW800EAG-3P# CJ 700,  800


50 / 2530 / 15
BW800RAG-3P# CJ 700,  800


100/5050/25
BW800RAG-4P# CJ 700,  800


100/5050/25
BW800HAG-3P# CJ 700,  800


125/6370/35
BW800HAG-4P# CJ 700,  800


125/6370/35

6.2.1  MCCB  --  2, 3,4*
型   号額    定    电    流


分断容量Icu / Ics(kA)

( A )#


AC230VAC400V
BW125JAGC-2P#15, 20 ,30, 40, 50, 60, 75, 100, 125


50 / 2530 / 15
BW125JAGC-3P#15, 20 ,30, 40, 50, 60, 75, 100, 125


50 / 2530 / 15
BW125JAGC-4P#15, 20 ,30, 40, 50, 60, 75, 100, 125


50 / 2530 / 15
BW125SAGC-2P#15, 20 ,30, 40, 50, 60, 75, 100, 125


85 / 4336 / 18
BW125SAGC-3P#15, 20 ,30, 40, 50, 60, 75, 100, 125


85 / 4336 / 18
BW125SAGC-4P#15, 20 ,30, 40, 50, 60, 75, 100, 125


85 / 4336 / 18
BW125RAGC-2P#15, 20 ,30, 40, 50, 60, 75, 100, 125


100 / 5050 / 25
BW125RAGC-3P#15, 20 ,30, 40, 50, 60, 75, 100, 125


100 / 5050 / 25
BW125RAGC-4P#15, 20 ,30, 40, 50, 60, 75, 100, 125


100 / 5050 / 25
BW160EAGC-2P#125, 150 ,160


36 / 1818 / 9
BW160EAGC-3P#125, 150 ,160


36 / 1818 / 9
BW160JAGC-2P#125, 150 ,160


50 / 2530 / 15
BW160JAGC-3P#125, 150 ,160


50 / 2530 / 15
BW160JAGC-4P#125, 150 ,160


50 / 2530 / 15
BW160SAGC-2P#125, 150 ,160


85/4336/18
BW160SAGC-3P#125, 150 ,160


85/4336/18
BW160SAGC-4P#125, 150 ,160


85/4336/18
BW160RAGC-2P#125, 150 ,160


100/5050/25
BW160RAGC-3P#125, 150 ,160


100/5050/25
BW160RAGC-4P#125, 150 ,160


100/5050/25
BW250EAGC-2P#175,  200,  225,  250


36 / 1818 / 9
BW250EAGC-3P#175,  200,  225,  250


36 / 1818 / 9
BW250JAGC-2P#175,  200,  225,  250


50/2530/15
BW250JAGC-3P#175,  200,  225,  250


50/2530/15
BW250JAGC-4P#175,  200,  225,  250


50/2530/15
BW250SAGC-2P#175,  200,  225,  250


85/4336/18
BW250SAGC-3P#175,  200,  225,  250


85/4336/18
BW250SAGC-4P#175,  200,  225,  250


85/4336/18
BW250RAGC-2P#175,  200,  225,  250


100/5050/25
BW250RAGC-3P#175,  200,  225,  250


100/5050/25
BW250RAGC-4P#175,  200,  225,  250


100/5050/25
BW400EAGC-2P#250,  300,  350,  400


50/2530/15
BW400EAGC-3P#250,  300,  350,  400


50/2530/15
BW400SAGC-2P#250,  300,  350,  400


85/4336/18
BW400SAGC-3P#250,  300,  350,  400


85/4336/18
BW400RAGC-2P#250,  300,  350,  400


100/5050/25
BW400RAGC-3P#250,  300,  350,  400


100/5050/25
BW400RAGC-4P#250,  300,  350,  400


100/5050/25

6.2.2  ELCB  --  2, 3,4*
型   号額    定    电    流額定剩余动作电流分断容量Icu / Ics(kA)

( A )#(mA)$AC230VAC400V
EW125JAGC-3P#$15,20,30,40,50,60,75,100,125

30,100/300/500/100050 / 2530 / 15
EW125JAGC-4P#$15,20,30,40,50,60,75,100,125

30,100/300/500/100050 / 2530 / 15
EW125SAGC-3P#$15,20,30,40,50,60,75,100,125

30,100/300/500/100085 / 4336 / 18
EW125SAGC-4P#$15,20,30,40,50,60,75,100,125

30,100/300/500/100085 / 4336 / 18
EW125RAGC-3P#$15,20,30,40,50,60,75,100,125

30,100/300/500/1000100 / 5050 / 25
EW125RAGC-4P#$15,20,30,40,50,60,75,100,125

30,100/300/500/1000100 / 5050 / 25
EW160EAGC-3P#$125, 150 ,160

30,100/300/500/100036 / 1818 / 9
EW160JAGC-3P#$125, 150 ,160

30,100/300/500/100050 / 2530 / 15
EW160JAGC-4P#$125, 150 ,160

30,100/300/500/100050 / 2530 / 15
EW160SAGC-3P#$125, 150 ,160

30,100/300/500/100085 / 4336 / 18
EW160SAGC-4P#$125, 150 ,160

30,100/300/500/100085 / 4336 / 18
EW160RAGC-3P#$125, 150 ,160

30,100/300/500/1000100 / 5050 / 25
EW160RAGC-4P#$125, 150 ,160

30,100/300/500/1000100 / 5050 / 25
EW250EAGC-3P#$175,  200,  225,  250

30,100/300/500/100036 / 1818 / 9
EW250JAGC-3P#$175,  200,  225,  250

30,100/300/500/100050 / 2530 / 15
EW250JAGC-4P#$175,  200,  225

30,100/300/500/100050 / 2530 / 15
EW250SAGC-3P#$175,  200,  225,  250

30,100/300/500/100085 / 4336 / 18
EW250SAGC-4P#$175,  200,  225

30,100/300/500/100085 / 4336 / 18
EW250RAGC-3P#$175,  200,  225,  250

30,100/300/500/1000100/5050/25
EW250RAGC-4P#$175,  200,  225

30,100/300/500/1000100/5050/25
EW400EAGC-3P#$250,  300,  350,  400

30,100/300/500/100050 / 2530 / 15
EW400SAGC-3P#$250,  300,  350,  400

30,100/300/500/100085 / 4336 / 18
EW400RAGC-3P#$250,  300,  350,  400

30,100/300/500/1000100/5050/25
EW400RAGC-4P#$250,  300,  350,  400

30,100/300/500/1000100/5050/25
