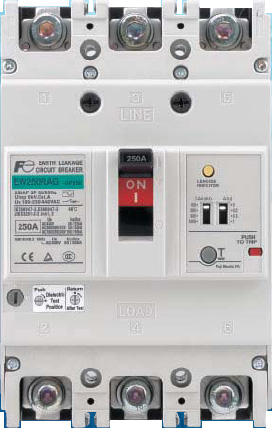

富士电机FUJI-漏电断路器G-TWIN系列 [标准型]
小型而功能。产品阵容增加到4P型号。 125-400AF的新型塑壳式断路器。
特点
根据富士独自的消融式断路技术，实现了小型而高功能。
统一了内部附属品尺寸，使用更简便。(125/250AF)
搭配了新开发的漏电检测装置、提高了抗干扰和电涌耐量
装备了高阻表试验切换开关、在进行耐电压试验时不需要拆下ELB的接线，所以大幅度提高了作业效率。
对于三相电路中、内装了即使一相缺相时可完成接地动作的新三相电路，可以更小型，更安全。
标明主要部件的材料，符合RoHS指令、接点使用无镉材料，达到环保目的。

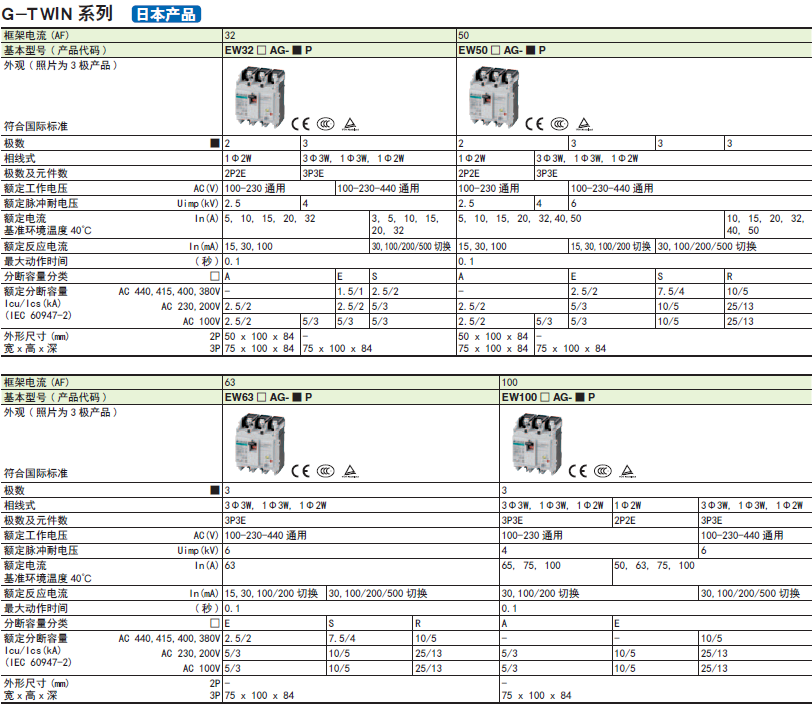

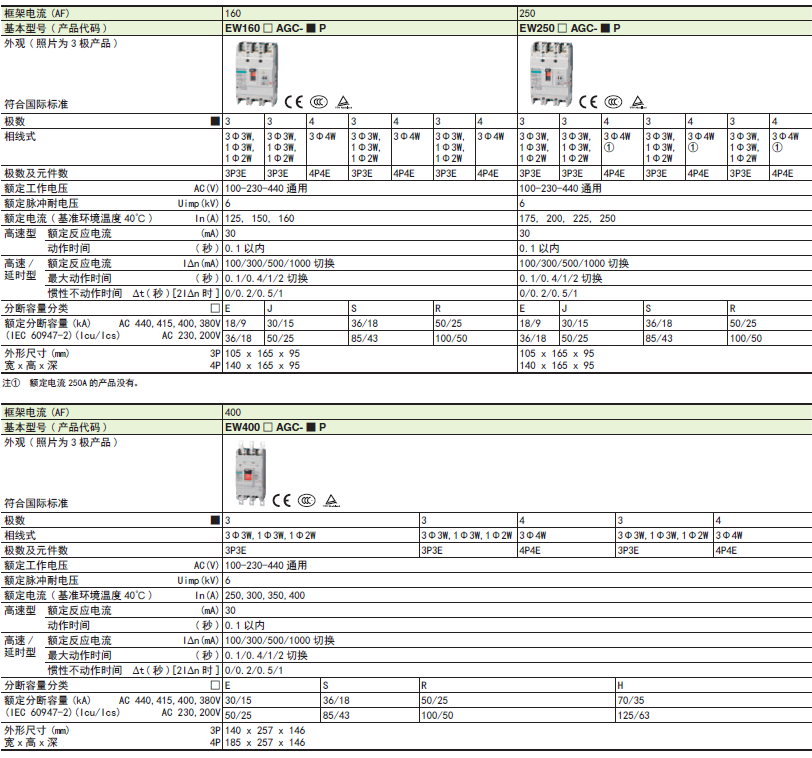

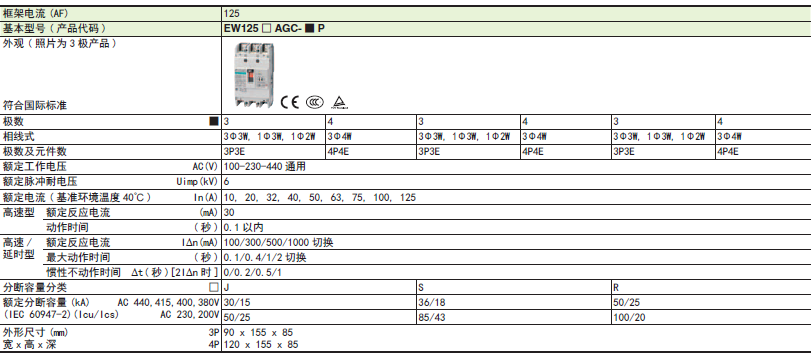

| 6.3.3 ELCB -- 3,4*（标准品） | ||||||
| 型 号 | 額 定 电 流 | 額定剩余动作电流 | 分断容量Icu / Ics(kA) | |||
| ( A )# | (mA)$ | AC230V | AC400V | |||
| EW32AAG-2P#$ | 3,5,10,15,20,30,32 | 15,30,100 | 2.5/2 | 1.5/1 | ||
| EW32AAG-3P#$ | 3,5,10,15,20,30,32 | 15,30,100 | 2.5/2 | |||
| EW32EAG-3P#$ | 3,5,10,15,20,30,32 | 15,30,100 | 2.5/2 | 1.5/1 | ||
| EW32SAG-3P#$ | 3,5,10,15,20,30,32 | 30,100/200/500 | 5/3 | 2.5/2 | ||
| EW50AAG-2P#$ | 5,10,15,20,30,32,40,50 | 15,30,100 | 2.5/2 | |||
| EW50AAG-3P#$ | 5,10,15,20,30,32,40,50 | 15,30,100 | 2.5/2 | |||
| EW50EAG-3P#$ | 5,10,15,20,30,32,40,50 | 15,30,100/200 | 5/3 | 2.5/2 | ||
| EW50SAG-3P#$ | 5,10,15,20,30,32,40,50 | 30,100/200/500 | 10/5 | 7.5/4 | ||
| EW50RAG-3P#$ | 5,10,15,20,30,32,40,50 | 30,100/200/500 | 25/13 | 10/5 | ||
| EW63EAG-3P#$ | 60,63 | 15,30,100/200 | 5/3 | 2.5/2 | ||
| EW63SAG-3P#$ | 60,63 | 30,100/200/500 | 10/5 | 7.5/4 | ||
| EW63RAG-3P#$ | 60,63 | 30,100/200/500 | 25/13 | 10/5 | ||
| EW100EAG-2P#$ | 50,60,63,75,100 | 30,100/200/500 | 10/5 | |||
| EW100AAG-3P#$ | 60,63,75,100 | 30,100/200 | 5/3 | |||
| EW100EAG-3P#$ | 50,60,63,75,100 | 30,100/200/500 | 25/13 | 10/5 | ||
| EW125JAG-3P#$ CJ | 15,20,30,40,50,60,75,100,125 | 30,100/300/500/1000 | 50 / 25 | 30 / 15 | ||
| EW125JAG-4P#$ CJ | 15,20,30,40,50,60,75,100,125 | 30,100/300/500/1000 | 50 / 25 | 30 / 15 | ||
| EW125RAG-3P#$ CJ | 15,20,30,40,50,60,75,100,125 | 30,100/300/500/1000 | 100 / 50 | 50 / 25 | ||
| EW125RAG-4P#$ CJ | 15,20,30,40,50,60,75,100,125 | 30,100/300/500/1000 | 100 / 50 | 50 / 25 | ||
| EW250EAG-3P#$ CJ | 125,150,160,175,200,225,250 | 30,100/300/500/1000 | 36 / 18 | 18 / 9 | ||
| EW250JAG-3P#$ CJ | 125,150,160,175,200,225,250 | 30,100/300/500/1000 | 50 / 25 | 30 / 15 | ||
| EW250JAG-4P#$ CJ | 125,150,160,175,200,225,250 | 30,100/300/500/1000 | 50 / 25 | 30 / 15 | ||
| EW250RAG-3P#$ CJ | 125,150,160,175,200,225,250 | 30,100/300/500/1000 | 100/50 | 50/25 | ||
| EW250RAG-4P#$ CJ | 125,150,160,175,200,225,250 | 30,100/300/500/1000 | 100/50 | 50/25 | ||
| EW400EAG-3P#$ CJ | 250, 300, 350, 400 | 30,100/300/500/1000 | 50 / 25 | 30 / 15 | ||
| EW400SAG-3P#$ CJ | 250, 300, 350, 400 | 30,100/300/500/1000 | 85 / 43 | 36 / 18 | ||
| EW400RAG-3P#$ CJ | 250, 300, 350, 400 | 30,100/300/500/1000 | 100/50 | 50/25 | ||
| EW400RAG-4P#$ CJ | 250, 300, 350, 400 | 30,100/300/500/1000 | 100/50 | 50/25 | ||
| EW400HAG-3P#$ CJ | 250, 300, 350, 400 | 30,100/300/500/1000 | 125/63 | 70/35 | ||
| EW400HAG-4P#$ CJ | 250, 300, 350, 400 | 30,100/300/500/1000 | 125/63 | 70/35 | ||
| EW630EAG-3P#$ CJ | 500, 630 | 50 / 25 | 30 / 15 | |||
| EW630RAG-3P#$ CJ | 500, 630 | 30,100/300/500/1000 | 100/50 | 50/25 | ||
| EW630RAG-4P#$ CJ | 500, 630 | 30,100/300/500/1000 | 100/50 | 50/25 | ||
| EW630HAG-3P#$ CJ | 500, 630 | 30,100/300/500/1000 | 125/63 | 70/35 | ||
| EW630HAG-4P#$ CJ | 500, 630 | 30,100/300/500/1000 | 125/63 | 70/35 | ||
| EW800EAG-3P#$ CJ | 700, 800 | 30,100/300/500/1000 | 50 / 25 | 30 / 15 | ||
| EW800RAG-3P#$ CJ | 700, 800 | 30,100/300/500/1000 | 100/50 | 50/25 | ||
| EW800RAG-4P#$ CJ | 700, 800 | 30,100/300/500/1000 | 100/50 | 50/25 | ||
| EW800HAG-3P#$ CJ | 700, 800 | 30,100/300/500/1000 | 125/63 | 70/35 | ||
| EW800HAG-4P#$ CJ | 700, 800 | 30,100/300/500/1000 | 125/63 | 70/35 | ||
| 6.3.3 ELCB -- 3,4*（标准品） | ||||||
| 型 号 | 額 定 电 流 | 額定剩余动作电流 | 分断容量Icu / Ics(kA) | |||
| ( A )# | (mA)$ | AC230V | AC400V | |||
| EW32AAG-2P#$ | 3,5,10,15,20,30,32 | 15,30,100 | 2.5/2 | 1.5/1 | ||
| EW32AAG-3P#$ | 3,5,10,15,20,30,32 | 15,30,100 | 2.5/2 | |||
| EW32EAG-3P#$ | 3,5,10,15,20,30,32 | 15,30,100 | 2.5/2 | 1.5/1 | ||
| EW32SAG-3P#$ | 3,5,10,15,20,30,32 | 30,100/200/500 | 5/3 | 2.5/2 | ||
| EW50AAG-2P#$ | 5,10,15,20,30,32,40,50 | 15,30,100 | 2.5/2 | |||
| EW50AAG-3P#$ | 5,10,15,20,30,32,40,50 | 15,30,100 | 2.5/2 | |||
| EW50EAG-3P#$ | 5,10,15,20,30,32,40,50 | 15,30,100/200 | 5/3 | 2.5/2 | ||
| EW50SAG-3P#$ | 5,10,15,20,30,32,40,50 | 30,100/200/500 | 10/5 | 7.5/4 | ||
| EW50RAG-3P#$ | 5,10,15,20,30,32,40,50 | 30,100/200/500 | 25/13 | 10/5 | ||
| EW63EAG-3P#$ | 60,63 | 15,30,100/200 | 5/3 | 2.5/2 | ||
| EW63SAG-3P#$ | 60,63 | 30,100/200/500 | 10/5 | 7.5/4 | ||
| EW63RAG-3P#$ | 60,63 | 30,100/200/500 | 25/13 | 10/5 | ||
| EW100EAG-2P#$ | 50,60,63,75,100 | 30,100/200/500 | 10/5 | |||
| EW100AAG-3P#$ | 60,63,75,100 | 30,100/200 | 5/3 | |||
| EW100EAG-3P#$ | 50,60,63,75,100 | 30,100/200/500 | 25/13 | 10/5 | ||
| EW125JAG-3P#$ CJ | 15,20,30,40,50,60,75,100,125 | 30,100/300/500/1000 | 50 / 25 | 30 / 15 | ||
| EW125JAG-4P#$ CJ | 15,20,30,40,50,60,75,100,125 | 30,100/300/500/1000 | 50 / 25 | 30 / 15 | ||
| EW125RAG-3P#$ CJ | 15,20,30,40,50,60,75,100,125 | 30,100/300/500/1000 | 100 / 50 | 50 / 25 | ||
| EW125RAG-4P#$ CJ | 15,20,30,40,50,60,75,100,125 | 30,100/300/500/1000 | 100 / 50 | 50 / 25 | ||
| EW250EAG-3P#$ CJ | 125,150,160,175,200,225,250 | 30,100/300/500/1000 | 36 / 18 | 18 / 9 | ||
| EW250JAG-3P#$ CJ | 125,150,160,175,200,225,250 | 30,100/300/500/1000 | 50 / 25 | 30 / 15 | ||
| EW250JAG-4P#$ CJ | 125,150,160,175,200,225,250 | 30,100/300/500/1000 | 50 / 25 | 30 / 15 | ||
| EW250RAG-3P#$ CJ | 125,150,160,175,200,225,250 | 30,100/300/500/1000 | 100/50 | 50/25 | ||
| EW250RAG-4P#$ CJ | 125,150,160,175,200,225,250 | 30,100/300/500/1000 | 100/50 | 50/25 | ||
| EW400EAG-3P#$ CJ | 250, 300, 350, 400 | 30,100/300/500/1000 | 50 / 25 | 30 / 15 | ||
| EW400SAG-3P#$ CJ | 250, 300, 350, 400 | 30,100/300/500/1000 | 85 / 43 | 36 / 18 | ||
| EW400RAG-3P#$ CJ | 250, 300, 350, 400 | 30,100/300/500/1000 | 100/50 | 50/25 | ||
| EW400RAG-4P#$ CJ | 250, 300, 350, 400 | 30,100/300/500/1000 | 100/50 | 50/25 | ||
| EW400HAG-3P#$ CJ | 250, 300, 350, 400 | 30,100/300/500/1000 | 125/63 | 70/35 | ||
| EW400HAG-4P#$ CJ | 250, 300, 350, 400 | 30,100/300/500/1000 | 125/63 | 70/35 | ||
| EW630EAG-3P#$ CJ | 500, 630 | 50 / 25 | 30 / 15 | |||
| EW630RAG-3P#$ CJ | 500, 630 | 30,100/300/500/1000 | 100/50 | 50/25 | ||
| EW630RAG-4P#$ CJ | 500, 630 | 30,100/300/500/1000 | 100/50 | 50/25 | ||
| EW630HAG-3P#$ CJ | 500, 630 | 30,100/300/500/1000 | 125/63 | 70/35 | ||
| EW630HAG-4P#$ CJ | 500, 630 | 30,100/300/500/1000 | 125/63 | 70/35 | ||
| EW800EAG-3P#$ CJ | 700, 800 | 30,100/300/500/1000 | 50 / 25 | 30 / 15 | ||
| EW800RAG-3P#$ CJ | 700, 800 | 30,100/300/500/1000 | 100/50 | 50/25 | ||
| EW800RAG-4P#$ CJ | 700, 800 | 30,100/300/500/1000 | 100/50 | 50/25 | ||
| EW800HAG-3P#$ CJ | 700, 800 | 30,100/300/500/1000 | 125/63 | 70/35 | ||
| EW800HAG-4P#$ CJ | 700, 800 | 30,100/300/500/1000 | 125/63 | 70/35 | ||
