发布日期：2023-09-14 访问次数：94

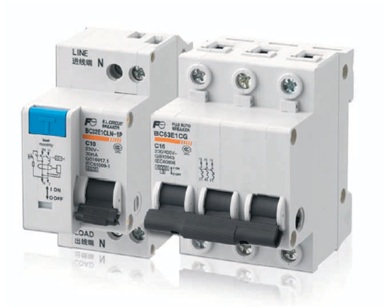

富士电机FUJI-BC系列小型(漏电)断路器
本系列小型断路器是以保护住宅或类似设施中的配电设备免受过电流破坏为目的。
特点
过载保护特*中，备有保护照明电气系统用的具有5-10In瞬时脱扣特征的C型特征，
保护普通电气系统得电线用的具有10-14In瞬时脱扣特征的D型特征，
小型断路器和漏电脱扣器相组合的漏电断路器产品系列也相当齐全。
由于可以安装辅助开关，报警开关，
分励脱扣器等功能元件，因此亦可对电气系统进行监视和控制，
额定电流：1~125A。

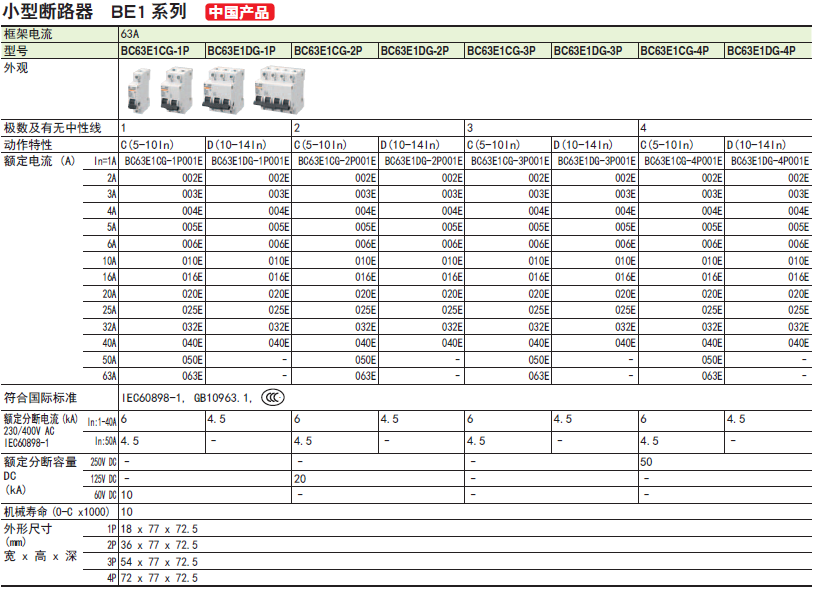

| 7.MCB小型断路器 | ||||
| 7.1 BC63系列小型断路器 | ||||
| 型 号 | *数 | 額定电流 | 额定分断容量 | 动作特* |
| ( A ) | AC230/400V（kA） | |||
| BC63E2CG-1P001 | 1P | 1 | 6kA | C |
| BC63E2CG-1P002 | 1P | 2 | 6kA | C |
| BC63E2CG-1P003 | 1P | 3 | 6kA | C |
| BC63E2CG-1P004 | 1P | 4 | 6kA | C |
| BC63E2CG-1P005 | 1P | 5 | 6kA | C |
| BC63E2CG-1P006 | 1P | 6 | 6kA | C |
| BC63E2CG-1P010 | 1P | 10 | 6kA | C |
| BC63E2CG-1P016 | 1P | 16 | 6kA | C |
| BC63E2CG-1P020 | 1P | 20 | 6kA | C |
| BC63E2CG-1P025 | 1P | 25 | 6kA | C |
| BC63E2CG-1P032 | 1P | 32 | 6kA | C |
| BC63E2CG-1P040 | 1P | 40 | 6kA | C |
| BC63E2CG-1P050 | 1P | 50 | 6kA | C |
| BC63E2CG-1P063 | 1P | 63 | 6kA | C |
| BC63E2DG-1P001 | 1P | 1 | 6kA | D |
| BC63E2DG-1P002 | 1P | 2 | 6kA | D |
| BC63E2DG-1P003 | 1P | 3 | 6kA | D |
| BC63E2DG-1P004 | 1P | 4 | 6kA | D |
| BC63E2DG-1P005 | 1P | 5 | 6kA | D |
| BC63E2DG-1P006 | 1P | 6 | 6kA | D |
| BC63E2DG-1P010 | 1P | 10 | 6kA | D |
| BC63E2DG-1P016 | 1P | 16 | 6kA | D |
| BC63E2DG-1P020 | 1P | 20 | 6kA | D |
| BC63E2DG-1P025 | 1P | 25 | 6kA | D |
| BC63E2DG-1P032 | 1P | 32 | 6kA | D |
| BC63E2DG-1P040 | 1P | 40 | 6kA | D |
| BC63E2DG-1P050 | 1P | 50 | 6kA | D |
| BC63E2DG-1P063 | 1P | 63 | 6kA | D |
| BC63E2CG-2P001 | 2P | 1 | 6kA | C |
| BC63E2CG-2P002 | 2P | 2 | 6kA | C |
| BC63E2CG-2P003 | 2P | 3 | 6kA | C |
| BC63E2CG-2P004 | 2P | 4 | 6kA | C |
| BC63E2CG-2P005 | 2P | 5 | 6kA | C |
| BC63E2CG-2P006 | 2P | 6 | 6kA | C |
| BC63E2CG-2P010 | 2P | 10 | 6kA | C |
| BC63E2CG-2P016 | 2P | 16 | 6kA | C |
| BC63E2CG-2P020 | 2P | 20 | 6kA | C |
| BC63E2CG-2P025 | 2P | 25 | 6kA | C |
| BC63E2CG-2P032 | 2P | 32 | 6kA | C |
| BC63E2CG-2P040 | 2P | 40 | 6kA | C |
| BC63E2CG-2P050 | 2P | 50 | 6kA | C |
| BC63E2CG-2P063 | 2P | 63 | 6kA | C |
| BC63E2DG-2P001 | 2P | 1 | 6kA | D |
| BC63E2DG-2P002 | 2P | 2 | 6kA | D |
| BC63E2DG-2P003 | 2P | 3 | 6kA | D |
| BC63E2DG-2P004 | 2P | 4 | 6kA | D |
| BC63E2DG-2P005 | 2P | 5 | 6kA | D |
| BC63E2DG-2P006 | 2P | 6 | 6kA | D |
| BC63E2DG-2P010 | 2P | 10 | 6kA | D |
| BC63E2DG-2P016 | 2P | 16 | 6kA | D |
| BC63E2DG-2P020 | 2P | 20 | 6kA | D |
| BC63E2DG-2P025 | 2P | 25 | 6kA | D |
| BC63E2DG-2P032 | 2P | 32 | 6kA | D |
| BC63E2DG-2P040 | 2P | 40 | 6kA | D |
| BC63E2DG-2P050 | 2P | 50 | 6kA | D |
| BC63E2DG-2P063 | 2P | 63 | 6kA | D |
| BC63E2CG-3P001 | 3P | 1 | 6kA | C |
| BC63E2CG-3P002 | 3P | 2 | 6kA | C |
| BC63E2CG-3P003 | 3P | 3 | 6kA | C |
| BC63E2CG-3P004 | 3P | 4 | 6kA | C |
| BC63E2CG-3P005 | 3P | 5 | 6kA | C |
| BC63E2CG-3P006 | 3P | 6 | 6kA | C |
| BC63E2CG-3P010 | 3P | 10 | 6kA | C |
| BC63E2CG-3P016 | 3P | 16 | 6kA | C |
| BC63E2CG-3P020 | 3P | 20 | 6kA | C |
| BC63E2CG-3P025 | 3P | 25 | 6kA | C |
| BC63E2CG-3P032 | 3P | 32 | 6kA | C |
| BC63E2CG-3P040 | 3P | 40 | 6kA | C |
| BC63E2CG-3P050 | 3P | 50 | 6kA | C |
| BC63E2CG-3P063 | 3P | 63 | 6kA | C |
| BC63E2DG-3P001 | 3P | 1 | 6kA | D |
| BC63E2DG-3P002 | 3P | 2 | 6kA | D |
| BC63E2DG-3P003 | 3P | 3 | 6kA | D |
| BC63E2DG-3P004 | 3P | 4 | 6kA | D |
| BC63E2DG-3P005 | 3P | 5 | 6kA | D |
| BC63E2DG-3P006 | 3P | 6 | 6kA | D |
| BC63E2DG-3P010 | 3P | 10 | 6kA | D |
| BC63E2DG-3P016 | 3P | 16 | 6kA | D |
| BC63E2DG-3P020 | 3P | 20 | 6kA | D |
| BC63E2DG-3P025 | 3P | 25 | 6kA | D |
| BC63E2DG-3P032 | 3P | 32 | 6kA | D |
| BC63E2DG-3P040 | 3P | 40 | 6kA | D |
| BC63E2DG-3P050 | 3P | 50 | 6kA | D |
| BC63E2DG-3P063 | 3P | 63 | 6kA | D |
| BC63E2CG-4P001 | 4P | 1 | 6kA | C |
| BC63E2CG-4P002 | 4P | 2 | 6kA | C |
| BC63E2CG-4P003 | 4P | 3 | 6kA | C |
| BC63E2CG-4P004 | 4P | 4 | 6kA | C |
| BC63E2CG-4P005 | 4P | 5 | 6kA | C |
| BC63E2CG-4P006 | 4P | 6 | 6kA | C |
| BC63E2CG-4P010 | 4P | 10 | 6kA | C |
| BC63E2CG-4P016 | 4P | 16 | 6kA | C |
| BC63E2CG-4P020 | 4P | 20 | 6kA | C |
| BC63E2CG-4P025 | 4P | 25 | 6kA | C |
| BC63E2CG-4P032 | 4P | 32 | 6kA | C |
| BC63E2CG-4P040 | 4P | 40 | 6kA | C |
| BC63E2CG-4P050 | 4P | 50 | 6kA | C |
| BC63E2CG-4P063 | 4P | 63 | 6kA | C |
| BC63E2DG-4P001 | 4P | 1 | 6kA | D |
| BC63E2DG-4P002 | 4P | 2 | 6kA | D |
| BC63E2DG-4P003 | 4P | 3 | 6kA | D |
| BC63E2DG-4P004 | 4P | 4 | 6kA | D |
| BC63E2DG-4P005 | 4P | 5 | 6kA | D |
| BC63E2DG-4P006 | 4P | 6 | 6kA | D |
| BC63E2DG-4P010 | 4P | 10 | 6kA | D |
| BC63E2DG-4P016 | 4P | 16 | 6kA | D |
| BC63E2DG-4P020 | 4P | 20 | 6kA | D |
| BC63E2DG-4P025 | 4P | 25 | 6kA | D |
| BC63E2DG-4P032 | 4P | 32 | 6kA | D |
| BC63E2DG-4P040 | 4P | 40 | 6kA | D |
| BC63E2DG-4P050 | 4P | 50 | 6kA | D |
| BC63E2DG-4P063 | 4P | 63 | 6kA | D |
| 7.2 BC32系列*小型断路器(相线+中*线) | ||||
| 型 号 | *数 | 額定电流 | 额定分断容量 | 动作特* |
| ( A ) | （kA） | |||
| BC32E2CN-1N006 | 1P+N | 6 | 4.5kA (230V) | C |
| BC32E2CN-1N010 | 1P+N | 10 | 4.5kA (230V) | C |
| BC32E2CN-1N016 | 1P+N | 16 | 4.5kA (230V) | C |
| BC32E2CN-1N020 | 1P+N | 20 | 4.5kA (230V) | C |
| BC32E2CN-1N025 | 1P+N | 25 | 4.5kA (230V) | C |
| BC32E2CN-1N032 | 1P+N | 32 | 4.5kA (230V) | C |
| 7.3 BC63系列小型漏电断路器(相线+中*线) | ||||
| 型 号 | *数 | 額定电流 | 额定分断容量 | 动作特* |
| ( A ) | （kA） | |||
| BC63E2CL-1N001B | 1P+N | 1 | 6kA | C |
| BC63E2CL-1N002B | 1P+N | 2 | 6kA | C |
| BC63E2CL-1N003B | 1P+N | 3 | 6kA | C |
| BC63E2CL-1N004B | 1P+N | 4 | 6kA | C |
| BC63E2CL-1N005B | 1P+N | 5 | 6kA | C |
| BC63E2CL-1N006B | 1P+N | 6 | 6kA | C |
| BC63E2CL-1N010B | 1P+N | 10 | 6kA | C |
| BC63E2CL-1N016B | 1P+N | 16 | 6kA | C |
| BC63E2CL-1N020B | 1P+N | 20 | 6kA | C |
| BC63E2CL-1N025B | 1P+N | 25 | 6kA | C |
| BC63E2CL-1N032B | 1P+N | 32 | 6kA | C |
| BC63E2CL-1N040B | 1P+N | 40 | 6kA | C |
| BC63E2CL-1N050B | 1P+N | 50 | 6kA | C |
| BC63E2CL-1N063B | 1P+N | 63 | 6kA | C |
| BC63E2DL-1N001B | 1P+N | 1 | 6kA | D |
| BC63E2DL-1N002B | 1P+N | 2 | 6kA | D |
| BC63E2DL-1N003B | 1P+N | 3 | 6kA | D |
| BC63E2DL-1N004B | 1P+N | 4 | 6kA | D |
| BC63E2DL-1N005B | 1P+N | 5 | 6kA | D |
| BC63E2DL-1N006B | 1P+N | 6 | 6kA | D |
| BC63E2DL-1N010B | 1P+N | 10 | 6kA | D |
| BC63E2DL-1N016B | 1P+N | 16 | 6kA | D |
| BC63E2DL-1N020B | 1P+N | 20 | 6kA | D |
| BC63E2DL-1N025B | 1P+N | 25 | 6kA | D |
| BC63E2DL-1N032B | 1P+N | 32 | 6kA | D |
| BC63E2DL-1N040B | 1P+N | 40 | 6kA | D |
| BC63E2DL-1N050B | 1P+N | 50 | 6kA | D |
| BC63E2DL-1N063B | 1P+N | 63 | 6kA | D |
| BC63E2CL-2P001B | 2P | 1 | 6kA | C |
| BC63E2CL-2P002B | 2P | 2 | 6kA | C |
| BC63E2CL-2P003B | 2P | 3 | 6kA | C |
| BC63E2CL-2P004B | 2P | 4 | 6kA | C |
| BC63E2CL-2P005B | 2P | 5 | 6kA | C |
| BC63E2CL-2P006B | 2P | 6 | 6kA | C |
| BC63E2CL-2P010B | 2P | 10 | 6kA | C |
| BC63E2CL-2P016B | 2P | 16 | 6kA | C |
| BC63E2CL-2P020B | 2P | 20 | 6kA | C |
| BC63E2CL-2P025B | 2P | 25 | 6kA | C |
| BC63E2CL-2P032B | 2P | 32 | 6kA | C |
| BC63E2CL-2P040B | 2P | 40 | 6kA | C |
| BC63E2CL-2P050B | 2P | 50 | 6kA | C |
| BC63E2CL-2P063B | 2P | 63 | 6kA | C |
| BC63E2DL-2P001B | 2P | 1 | 6kA | D |
| BC63E2DL-2P002B | 2P | 2 | 6kA | D |
| BC63E2DL-2P003B | 2P | 3 | 6kA | D |
| BC63E2DL-2P004B | 2P | 4 | 6kA | D |
| BC63E2DL-2P005B | 2P | 5 | 6kA | D |
| BC63E2DL-2P006B | 2P | 6 | 6kA | D |
| BC63E2DL-2P010B | 2P | 10 | 6kA | D |
| BC63E2DL-2P016B | 2P | 16 | 6kA | D |
| BC63E2DL-2P020B | 2P | 20 | 6kA | D |
| BC63E2DL-2P025B | 2P | 25 | 6kA | D |
| BC63E2DL-2P032B | 2P | 32 | 6kA | D |
| BC63E2DL-2P040B | 2P | 40 | 6kA | D |
| BC63E2DL-2P050B | 2P | 50 | 6kA | D |
| BC63E2DL-2P063B | 2P | 63 | 6kA | D |
| BC63E2CL-3P006B | 3P | 1 | 6kA | C |
| BC63E2CL-3P001B | 3P | 2 | 6kA | C |
| BC63E2CL-3P002B | 3P | 3 | 6kA | C |
| BC63E2CL-3P003B | 3P | 4 | 6kA | C |
| BC63E2CL-3P004B | 3P | 5 | 6kA | C |
| BC63E2CL-3P005B | 3P | 6 | 6kA | C |
| BC63E2CL-3P010B | 3P | 10 | 6kA | C |
| BC63E2CL-3P016B | 3P | 16 | 6kA | C |
| BC63E2CL-3P020B | 3P | 20 | 6kA | C |
| BC63E2CL-3P025B | 3P | 25 | 6kA | C |
| BC63E2CL-3P032B | 3P | 32 | 6kA | C |
| BC63E2CL-3P040B | 3P | 40 | 6kA | C |
| BC63E2CL-3P050B | 3P | 50 | 6kA | C |
| BC63E2CL-3P063B | 3P | 63 | 6kA | C |
| BC63E2DL-3P006B | 3P | 1 | 6kA | D |
| BC63E2DL-3P001B | 3P | 2 | 6kA | D |
| BC63E2DL-3P002B | 3P | 3 | 6kA | D |
| BC63E2DL-3P003B | 3P | 4 | 6kA | D |
| BC63E2DL-3P004B | 3P | 5 | 6kA | D |
| BC63E2DL-3P005B | 3P | 6 | 6kA | D |
| BC63E2DL-3P010B | 3P | 10 | 6kA | D |
| BC63E2DL-3P016B | 3P | 16 | 6kA | D |
| BC63E2DL-3P020B | 3P | 20 | 6kA | D |
| BC63E2DL-3P025B | 3P | 25 | 6kA | D |
| BC63E2DL-3P032B | 3P | 32 | 6kA | D |
| BC63E2DL-3P040B | 3P | 40 | 6kA | D |
| BC63E2DL-3P050B | 3P | 50 | 6kA | D |
| BC63E2DL-3P063B | 3P | 63 | 6kA | D |
| BC63E2CL-3N001B | 3P+N | 1 | 6kA | C |
| BC63E2CL-3N002B | 3P+N | 2 | 6kA | C |
| BC63E2CL-3N003B | 3P+N | 3 | 6kA | C |
| BC63E2CL-3N004B | 3P+N | 4 | 6kA | C |
| BC63E2CL-3N005B | 3P+N | 5 | 6kA | C |
| BC63E2CL-3N006B | 3P+N | 6 | 6kA | C |
| BC63E2CL-3N010B | 3P+N | 10 | 6kA | C |
| BC63E2CL-3N016B | 3P+N | 16 | 6kA | C |
| BC63E2CL-3N020B | 3P+N | 20 | 6kA | C |
| BC63E2CL-3N025B | 3P+N | 25 | 6kA | C |
| BC63E2CL-3N032B | 3P+N | 32 | 6kA | C |
| BC63E2CL-3N040B | 3P+N | 40 | 6kA | C |
| BC63E2CL-3N050B | 3P+N | 50 | 6kA | C |
| BC63E2CL-3N063B | 3P+N | 63 | 6kA | C |
| BC63E2DL-3N001B | 3P+N | 1 | 6kA | D |
| BC63E2DL-3N002B | 3P+N | 2 | 6kA | D |
| BC63E2DL-3N003B | 3P+N | 3 | 6kA | D |
| BC63E2DL-3N004B | 3P+N | 4 | 6kA | D |
| BC63E2DL-3N005B | 3P+N | 5 | 6kA | D |
| BC63E2DL-3N006B | 3P+N | 6 | 6kA | D |
| BC63E2DL-3N010B | 3P+N | 10 | 6kA | D |
| BC63E2DL-3N016B | 3P+N | 16 | 6kA | D |
| BC63E2DL-3N020B | 3P+N | 20 | 6kA | D |
| BC63E2DL-3N025B | 3P+N | 25 | 6kA | D |
| BC63E2DL-3N032B | 3P+N | 32 | 6kA | D |
| BC63E2DL-3N040B | 3P+N | 40 | 6kA | D |
| BC63E2DL-3N050B | 3P+N | 50 | 6kA | D |
| BC63E2DL-3N063B | 3P+N | 63 | 6kA | D |
| BC63E2CL-4P001B | 4P | 1 | 6kA | C |
| BC63E2CL-4P002B | 4P | 2 | 6kA | C |
| BC63E2CL-4P003B | 4P | 3 | 6kA | C |
| BC63E2CL-4P004B | 4P | 4 | 6kA | C |
| BC63E2CL-4P005B | 4P | 5 | 6kA | C |
| BC63E2CL-4P006B | 4P | 6 | 6kA | C |
| BC63E2CL-4P010B | 4P | 10 | 6kA | C |
| BC63E2CL-4P016B | 4P | 16 | 6kA | C |
| BC63E2CL-4P020B | 4P | 20 | 6kA | C |
| BC63E2CL-4P025B | 4P | 25 | 6kA | C |
| BC63E2CL-4P032B | 4P | 32 | 6kA | C |
| BC63E2CL-4P040B | 4P | 40 | 6kA | C |
| BC63E2CL-4P050B | 4P | 50 | 6kA | C |
| BC63E2CL-4P063B | 4P | 63 | 6kA | C |
| BC63E2DL-4P001B | 4P | 1 | 6kA | D |
| BC63E2DL-4P002B | 4P | 2 | 6kA | D |
| BC63E2DL-4P003B | 4P | 3 | 6kA | D |
| BC63E2DL-4P004B | 4P | 4 | 6kA | D |
| BC63E2DL-4P005B | 4P | 5 | 6kA | D |
| BC63E2DL-4P006B | 4P | 6 | 6kA | D |
| BC63E2DL-4P010B | 4P | 10 | 6kA | D |
| BC63E2DL-4P016B | 4P | 16 | 6kA | D |
| BC63E2DL-4P020B | 4P | 20 | 6kA | D |
| BC63E2DL-4P025B | 4P | 25 | 6kA | D |
| BC63E2DL-4P032B | 4P | 32 | 6kA | D |
| BC63E2DL-4P040B | 4P | 40 | 6kA | D |
| BC63E2DL-4P050B | 4P | 50 | 6kA | D |
| BC63E2DL-4P063B | 4P | 63 | 6kA | D |

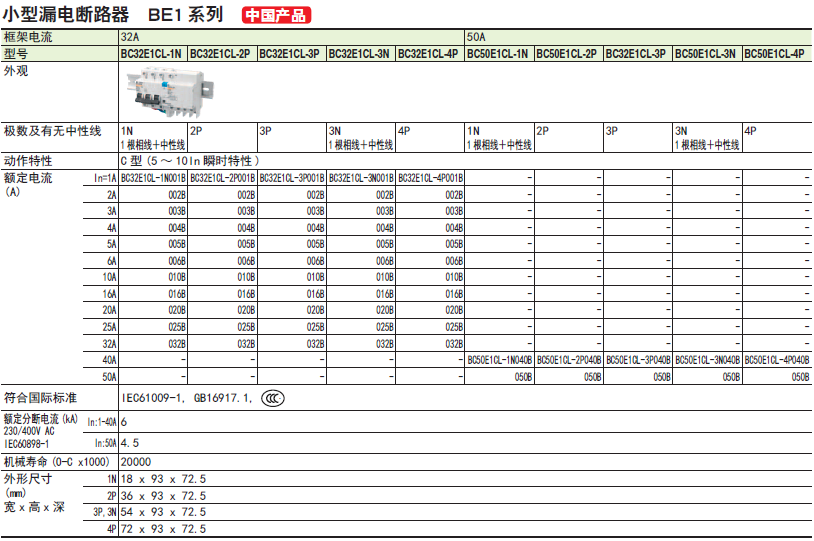

| 7.4 BC32系列小型漏电断路器(相线+中*线) | ||||
| 型 号 | *数 | 額定电流 | 额定分断容量 | 动作特* |
| ( A ) | （kA） | |||
| BC32E2CLN-1N006 | 1P+N | 6 | 4.5kA (230V) | C |
| BC32E2CLN-1N010 | 1P+N | 10 | 4.5kA (230V) | C |
| BC32E2CLN-1N016 | 1P+N | 16 | 4.5kA (230V) | C |
| BC32E2CLN-1N020 | 1P+N | 20 | 4.5kA (230V) | C |
| BC32E2CLN-1N025 | 1P+N | 25 | 4.5kA (230V) | C |
| BC32E2CLN-1N032 | 1P+N | 32 | 4.5kA (230V) | C |
| 7.5 BC125系列小型断路器 | ||||
| 型 号 | *数 | 額定电流 | 额定分断容量 | 动作特* |
| ( A ) | AC230/400V（kA） | |||
| BC125E2CG-1P050 | 1P | 50 | 10/7.5kA | C |
| BC125E2CG-1P063 | 1P | 63 | 10/7.5kA | C |
| BC125E2CG-1P080 | 1P | 80 | 10/7.5kA | C |
| BC125E2CG-1P100 | 1P | 100 | 10/7.5kA | C |
| BC125E2CG-1P125 | 1P | 125 | 10/7.5kA | C |
| BC125E2DG-1P050 | 1P | 50 | 10/7.5kA | D |
| BC125E2DG-1P063 | 1P | 63 | 10/7.5kA | D |
| BC125E2DG-1P080 | 1P | 80 | 10/7.5kA | D |
| BC125E2DG-1P100 | 1P | 100 | 10/7.5kA | D |
| BC125E2CG-2P050 | 2P | 50 | 10/7.5kA | C |
| BC125E2CG-2P063 | 2P | 63 | 10/7.5kA | C |
| BC125E2CG-2P080 | 2P | 80 | 10/7.5kA | C |
| BC125E2CG-2P100 | 2P | 100 | 10/7.5kA | C |
| BC125E2CG-2P125 | 2P | 125 | 10/7.5kA | C |
| BC125E2DG-2P050 | 2P | 50 | 10/7.5kA | D |
| BC125E2DG-2P063 | 2P | 63 | 10/7.5kA | D |
| BC125E2DG-2P080 | 2P | 80 | 10/7.5kA | D |
| BC125E2DG-2P100 | 2P | 100 | 10/7.5kA | D |
| BC125E2CG-3P050 | 3P | 50 | 10/7.5kA | C |
| BC125E2CG-3P063 | 3P | 63 | 10/7.5kA | C |
| BC125E2CG-3P080 | 3P | 80 | 10/7.5kA | C |
| BC125E2CG-3P100 | 3P | 100 | 10/7.5kA | C |
| BC125E2CG-3P125 | 3P | 125 | 10/7.5kA | C |
| BC125E2DG-3P050 | 3P | 50 | 10/7.5kA | D |
| BC125E2DG-3P063 | 3P | 63 | 10/7.5kA | D |
| BC125E2DG-3P080 | 3P | 80 | 10/7.5kA | D |
| BC125E2DG-3P100 | 3P | 100 | 10/7.5kA | D |
| BC125E2CG-4P050 | 4P | 50 | 10/7.5kA | C |
| BC125E2CG-4P063 | 4P | 63 | 10/7.5kA | C |
| BC125E2CG-4P080 | 4P | 80 | 10/7.5kA | C |
| BC125E2CG-4P100 | 4P | 100 | 10/7.5kA | C |
| BC125E2CG-4P125 | 4P | 125 | 10/7.5kA | C |
| BC125E2DG-4P050 | 4P | 50 | 10/7.5kA | D |
| BC125E2DG-4P063 | 4P | 63 | 10/7.5kA | D |
| BC125E2DG-4P080 | 4P | 80 | 10/7.5kA | D |
| BC125E2DG-4P100 | 4P | 100 | 10/7.5kA | D |
| 7.6 BC100系列小型断路器(隔离开关) | ||||
| 型 号 | *数 | 額定电流 | 额定分断容量 | 动作特* |
| ( A ) | AC230/400V（kA） | |||
| BC100E2CS-1P032 | 1P | 32 | 2000A | |
| BC100E2CS-1P063 | 1P | 63 | 2000A | |
| BC100E2CS-1P100 | 1P | 100 | 2000A | |
| BC100E2CS-2P032 | 2P | 32 | 2000A | |
| BC100E2CS-2P063 | 2P | 63 | 2000A | |
| BC100E2CS-2P100 | 2P | 100 | 2000A | |
| BC100E2CS-3P032 | 3P | 32 | 2000A | |
| BC100E2CS-3P063 | 3P | 63 | 2000A | |
| BC100E2CS-3P100 | 3P | 100 | 2000A | |
| BC100E2CS-4P032 | 4P | 32 | 2000A | |
| BC100E2CS-4P063 | 4P | 63 | 2000A | |
| BC100E2CS-4P100 | 4P | 100 | 2000A | |
| 7.7 BC100系列小型漏电断路器(相线+中*线) | ||||
| 型 号 | *数 | 額定电流 | 额定分断容量 | 动作特* |
| ( A ) | AC230/400V（kA） | |||
| BC100E2CL-1N050B | 1P+N | 50 | 10/4KA | C |
| BC100E2CL-1N050C | 1P+N | 50 | 10/4KA | C |
| BC100E2CL-1N063B | 1P+N | 63 | 10/4KA | C |
| BC100E2CL-1N063C | 1P+N | 63 | 10/4KA | C |
| BC100E2CL-1N080B | 1P+N | 80 | 10/4KA | C |
| BC100E2CL-1N080C | 1P+N | 80 | 10/4KA | C |
| BC100E2CL-1N100B | 1P+N | 100 | 10/4KA | C |
| BC100E2CL-1N100C | 1P+N | 100 | 10/4KA | C |
| BC100E2DL-1N050B | 1P+N | 50 | 10/4KA | D |
| BC100E2DL-1N050C | 1P+N | 50 | 10/4KA | D |
| BC100E2DL-1N063B | 1P+N | 63 | 10/4KA | D |
| BC100E2DL-1N063C | 1P+N | 63 | 10/4KA | D |
| BC100E2DL-1N080B | 1P+N | 80 | 10/4KA | D |
| BC100E2DL-1N080C | 1P+N | 80 | 10/4KA | D |
| BC100E2DL-1N100B | 1P+N | 100 | 10/4KA | D |
| BC100E2DL-1N100C | 1P+N | 100 | 10/4KA | D |
| BC100E2CL-2P050B | 2P | 50 | 20/10kA | C |
| BC100E2CL-2P050C | 2P | 50 | 20/10kA | C |
| BC100E2CL-2P063B | 2P | 63 | 20/10kA | C |
| BC100E2CL-2P063C | 2P | 63 | 20/10kA | C |
| BC100E2CL-2P080B | 2P | 80 | 20/10kA | C |
| BC100E2CL-2P080C | 2P | 80 | 20/10kA | C |
| BC100E2CL-2P100B | 2P | 100 | 20/10kA | C |
| BC100E2CL-2P100C | 2P | 100 | 20/10kA | C |
| BC100E2DL-2P050B | 2P | 50 | 20/10kA | D |
| BC100E2DL-2P050C | 2P | 50 | 20/10kA | D |
| BC100E2DL-2P063B | 2P | 63 | 20/10kA | D |
| BC100E2DL-2P063C | 2P | 63 | 20/10kA | D |
| BC100E2DL-2P080B | 2P | 80 | 20/10kA | D |
| BC100E2DL-2P080C | 2P | 80 | 20/10kA | D |
| BC100E2DL-2P100B | 2P | 100 | 20/10kA | D |
| BC100E2DL-2P100C | 2P | 100 | 20/10kA | D |
| BC100E2CL-3P050B | 3P | 50 | 20/10kA | C |
| BC100E2CL-3P050C | 3P | 50 | 20/10kA | C |
| BC100E2CL-3P063B | 3P | 63 | 20/10kA | C |
| BC100E2CL-3P063C | 3P | 63 | 20/10kA | C |
| BC100E2CL-3P080B | 3P | 80 | 20/10kA | C |
| BC100E2CL-3P080C | 3P | 80 | 20/10kA | C |
| BC100E2CL-3P100B | 3P | 100 | 20/10kA | C |
| BC100E2CL-3P100C | 3P | 100 | 20/10kA | C |
| BC100E2DL-3P050B | 3P | 50 | 20/10kA | D |
| BC100E2DL-3P050C | 3P | 50 | 20/10kA | D |
| BC100E2DL-3P063B | 3P | 63 | 20/10kA | D |
| BC100E2DL-3P063C | 3P | 63 | 20/10kA | D |
| BC100E2DL-3P080B | 3P | 80 | 20/10kA | D |
| BC100E2DL-3P080C | 3P | 80 | 20/10kA | D |
| BC100E2DL-3P100B | 3P | 100 | 20/10kA | D |
| BC100E2DL-3P100C | 3P | 100 | 20/10kA | D |
| BC100E2CL-3N050B | 3P＋N | 50 | 20/10kA | C |
| BC100E2CL-3N050C | 3P＋N | 50 | 20/10kA | C |
| BC100E2CL-3N063B | 3P＋N | 63 | 20/10kA | C |
| BC100E2CL-3N063C | 3P＋N | 63 | 20/10kA | C |
| BC100E2CL-3N080B | 3P＋N | 80 | 20/10kA | C |
| BC100E2CL-3N080C | 3P＋N | 80 | 20/10kA | C |
| BC100E2CL-3N100B | 3P＋N | 100 | 20/10kA | C |
| BC100E2CL-3N100C | 3P＋N | 100 | 20/10kA | C |
| BC100E2DL-3N050B | 3P＋N | 50 | 20/10kA | D |
| BC100E2DL-3N050C | 3P＋N | 50 | 20/10kA | D |
| BC100E2DL-3N063B | 3P＋N | 63 | 20/10kA | D |
| BC100E2DL-3N063C | 3P＋N | 63 | 20/10kA | D |
| BC100E2DL-3N080B | 3P＋N | 80 | 20/10kA | D |
| BC100E2DL-3N080C | 3P＋N | 80 | 20/10kA | D |
| BC100E2DL-3N100B | 3P＋N | 100 | 20/10kA | D |
| BC100E2DL-3N100C | 3P＋N | 100 | 20/10kA | D |
| BC100E2CL-4P050B | 4P | 50 | 20/10kA | C |
| BC100E2CL-4P050C | 4P | 50 | 20/10kA | C |
| BC100E2CL-4P063B | 4P | 63 | 20/10kA | C |
| BC100E2CL-4P063C | 4P | 63 | 20/10kA | C |
| BC100E2CL-4P080B | 4P | 80 | 20/10kA | C |
| BC100E2CL-4P080C | 4P | 80 | 20/10kA | C |
| BC100E2CL-4P100B | 4P | 100 | 20/10kA | C |
| BC100E2CL-4P100C | 4P | 100 | 20/10kA | C |
| BC100E2DL-4P050B | 4P | 50 | 20/10kA | D |
| BC100E2DL-4P050C | 4P | 50 | 20/10kA | D |
| BC100E2DL-4P063B | 4P | 63 | 20/10kA | D |
| BC100E2DL-4P063C | 4P | 63 | 20/10kA | D |
| BC100E2DL-4P080B | 4P | 80 | 20/10kA | D |
| BC100E2DL-4P080C | 4P | 80 | 20/10kA | D |
| BC100E2DL-4P100B | 4P | 100 | 20/10kA | D |
| BC100E2DL-4P100C | 4P | 100 | 20/10kA | D |
